Electrophysiological Consumable Items
EasyFinder™ Fixed Curve Diagnostic Catheter
Cardiovascular Electrophysiology Therapeutic field
Key Specifications
Device Class
Class II
Application
treating complex cardiac arrhythmias
Certification
CE
OEM/ODM and private-label options available on request — ask our export team.
Published: 2026-08-21 · Views: 163
Product Details
EasyFinder™ Fixed Curve Diagnostic Catheter is indicated for electrogram recording and cardiac stimulation during cardiac diagnostic electrophysiology studies.
Excellent Signal Quality
Platinum electrodes lead to consistent acquisition of high resolution electrograms
Stable Contact and Easy Access
The unique woven construction stabilizes tissue contact and facilitates access to challenging anatomy

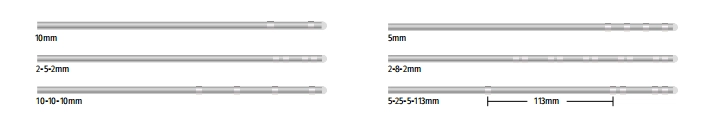

Ordering Information-No Tip Electrode
| Poles | Length (cm) | Diameter (F) | Spacing (mm) | Indication |
|---|---|---|---|---|
| 2/4/10 | 115/60/92 | 5/6 | 2-5-2——5-25-5-113 | RA/RV/HIS/CS |
Associated Cable
| Model | Connects | Length (m) | Connector | |
|---|---|---|---|---|
| at Catheter | at System | |||
| C0G004 | Bipolar/ Quadrapolar Fixed Curve Diagnostic Catheter to Columbus™ System PIU | 2 | 10-Pin | 4-Pin |
| C0G010 | Decapolar Fixed Curve Diagnostic Catheter to Columbus™ System PIU | 2 | 10-Pin | 10-Pin |
| 4P0610CT | Quadrapolar Fixed Curve Diagnostic Catheter to Columbus™ System Max | 2.5 | 10-Pin | 6-Pin |
| DC1210CT | Decapolar Fixed Curve Diagnostic Catheter to Columbus™ System Max | 2.5 | 10-Pin | 12-Pin |
