PathBuilder™ Transseptal Needle
Cardiovascular Electrophysiology Therapeutic field
OEM/ODM and private-label options available on request — ask our export team.

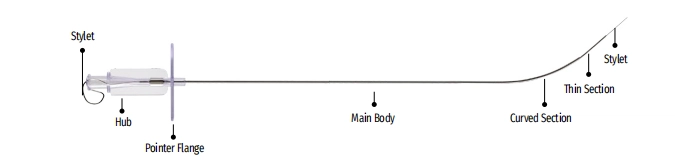

PathBuilder™ Transseptal Needle is composed of a needle and stylet. It can be utilized for puncturing oval fossa of atrial septum. When paired with PathBuilder™ Transseptal Guiding Introducer, accessing the left atrium becomes straightforward.
Flexible Curve
Easier to put into the heart
Gradual Change of Needle Diameter
Makes a good match with dilator
Locking Stylet
Prevents stylet from “pushing out” during the procedure
Unique Transparent Handle
Allows direct visualization to prevent bubble embolism
Tapered Needle Tip
Facilitates the puncture and ensures the safety
Sharp Needle Tip
The distal end of the needle is sharp, making it easy to cross a highly fibrous septum
Pointer Flange
Reference guide of the direction of the needle's curve
Ordering Information
| Model | Curve | Length (cm) | Diameter (Ga/mm) |
|---|---|---|---|
| TNS5619 | S | 56 | 19/1.1 |
| TNM5619 | M | 56 | 19/1.1 |
| *TNM7118 | M | 71 | 18/1.21 |
| TNM8918 | M | 89 | 18/1.21 |
| *TNM9818 | M | 98 | 18/1.21 |
| *TNL7118 | L | 71 | 18/1.21 |
| TNL9818 | L | 98 | 18/1.21 |
| TNL8918 | L | 89 | 18/1.21 |
